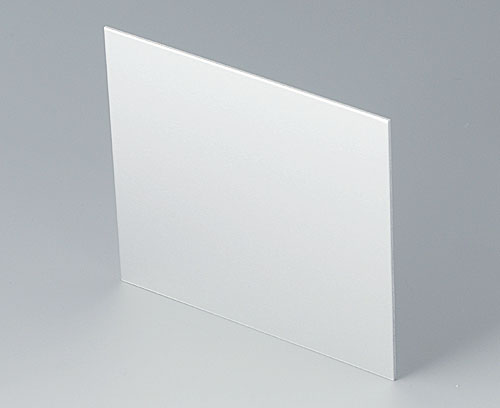

B6145112 Rear panel

B6145112

Rear panel

Rear panel for DIN-MODULAR CASE 144 x 144.

Supply

1 rear panel

  • Usato per
  • Modifiche specifiche del cliente
B6045011 DIN-MODULAR CASE TYPE A

B6045011

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6045011

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
144x144x57mm
B6045021 DIN-MODULAR CASE TYPE A

B6045021

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6045021

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
144x144x75mm
B6045031 DIN-MODULAR CASE TYPE A

B6045031

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6045031

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
144x144x100mm
B6045051 DIN-MODULAR CASE TYPE A

B6045051

DIN-MODULAR CASE TYPE A Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6045051

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
144x144x114mm

Customising options for B6145112

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
Colore
matt anodised
Width
131,3 mm
Height
118,6 mm
Thickness
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
20 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
