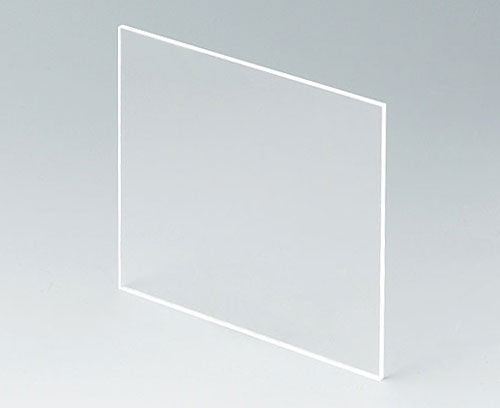

B6134331 Front panel

B6134331

Front panel

Front panel for DIN-MODULAR CASE 96 x 96.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
B6034011 DIN-MODULAR CASE TYPE A, Vers. I

B6034011

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6034011

DIN-MODULAR CASE TYPE A, Vers. I
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
96x96x57mm
B6034021 DIN-MODULAR CASE TYPE A, Vers. I

B6034021

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6034021

DIN-MODULAR CASE TYPE A, Vers. I
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
96x96x75mm
B6034031 DIN-MODULAR CASE TYPE A, Vers. I

B6034031

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 2 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6034031

DIN-MODULAR CASE TYPE A, Vers. I
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
96x96x100mm
B6034062 DIN-MODULAR CASE TYPE A, Vers. II

B6034062

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6034062

DIN-MODULAR CASE TYPE A, Vers. II
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
96x96x124mm
B6034102 DIN-MODULAR CASE TYPE A, Vers. II

B6034102

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version With guide ridges for slide-in PCB mounting on 4 sides

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6034102

DIN-MODULAR CASE TYPE A, Vers. II
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
96x96x179mm

Customising options for B6134331

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
Colore
transparent
Width
90,6 mm
Height
90,6 mm
Thickness
2,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
19 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
