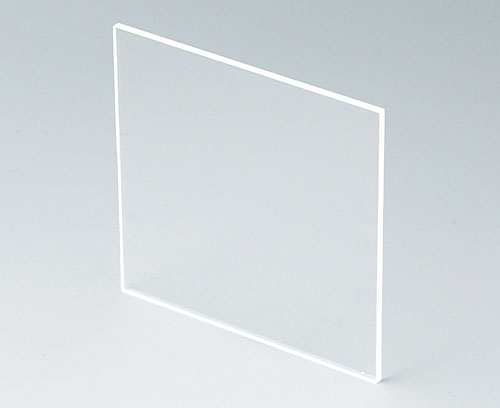

B6123331 Front panel

B6123331

Front panel

Front panel for DIN-MODULAR CASE 72 x 72.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
B6023011 DIN-MODULAR CASE TYPE A

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6023011

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm
B6023021 DIN-MODULAR CASE TYPE A

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6023021

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm
B6023031 DIN-MODULAR CASE TYPE A

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6023031

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm
B6023061 DIN-MODULAR CASE TYPE A

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Chiudi

B6023061

DIN-MODULAR CASE TYPE A
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Customising options for B6123331

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Materiale
Colore
transparent
Width
67,5 mm
Height
67,5 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39205100
Country of manufacture
Germany
