B6043011 DIN-MODULAR CASE TYPE A

B6043011

DIN-MODULAR CASE TYPE A

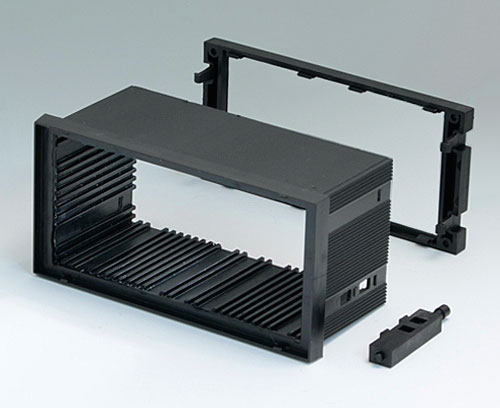

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

B6143111 Front panel

B6143111

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Chiudi

B6143111

Front panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
139,2x67,3x1,5mm
B6143112 Rear panel

B6143112

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

Chiudi

B6143112

Rear panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
118,9x62,6x1,5mm
B6143221 Front panel

B6143221

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Chiudi

B6143221

Front panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
139,3x67,5x2mm
B6143222 Rear panel

B6143222

Rear panel Rear panel for DIN-MODULAR CASE 144 x 72.

Supply 1 rear panel

Chiudi

B6143222

Rear panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
119,1x62,7x2mm
B6143331 Front panel

B6143331

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Chiudi

B6143331

Front panel
Prodotto aggiunto alla lista
Acrylic glass
transparent
139,2x67,3x2mm
B6143341 Front panel

B6143341

Front panel Front panel for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Chiudi

B6143341

Front panel
Prodotto aggiunto alla lista
Acrylic glass
red transparent
139,2x67,3x2mm
B6143451 Front panel

B6143451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 144 x 72.

Supply 1 front panel

Chiudi

B6143451

Front panel
Prodotto aggiunto alla lista
PC (IR)
139,2x67,4x2mm

Accessory "protection"

B6143533 Protection cover

B6143533

Protection cover Protection cover for DIN-MODULAR CASE 144 x 72.

Supply 1 protection cover

Chiudi

B6143533

Protection cover
Prodotto aggiunto alla lista
PC
transparent

Customising options for B6043011

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Width
144 mm
Height
72 mm
Depth
57 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 127 KB
Weight/1 part
108 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italia
