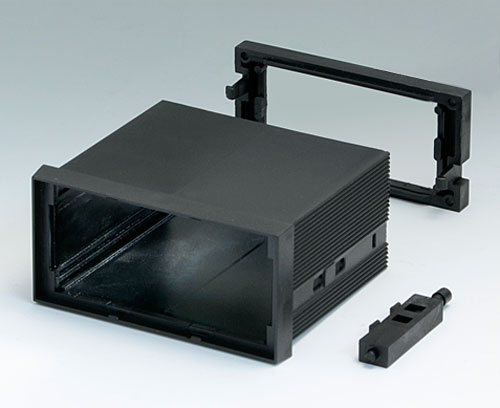

B6032021 DIN-MODULAR CASE TYPE A, Vers. I

B6032021

DIN-MODULAR CASE TYPE A, Vers. I

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version

With 2 guide ridges for mounting PCBs

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Chiudi

B6132111

Front panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
91,5x43,4x1,5mm
B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Chiudi

B6132112

Rear panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
73,5x39,6x1mm
B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Chiudi

B6132221

Front panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
91,6x43,5x2mm
B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 96 x 48.

Supply 1 rear panel

Chiudi

B6132222

Rear panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
73,6x39,75x1,7mm
B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Chiudi

B6132331

Front panel
Prodotto aggiunto alla lista
Acrylic glass
transparent
91,5x43,4x2mm
B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Chiudi

B6132341

Front panel
Prodotto aggiunto alla lista
Acrylic glass
red transparent
91,5x43,4x2mm
B6132451 Front panel

B6132451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 96 x 48.

Supply 1 front panel

Chiudi

B6132451

Front panel
Prodotto aggiunto alla lista
PC (IR)
91,6x43,5x2mm

Accessory "protection"

B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 96 x 48.

Supply 1 protection cover

Chiudi

B6132533

Protection cover
Prodotto aggiunto alla lista
PC
transparent

Customising options for B6032021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Standards
Width
96 mm
Height
48 mm
Depth
75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 156 KB
Weight/1 part
67 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italia
