B6012021 DIN-MODULAR CASE TYPE A

B6012021

DIN-MODULAR CASE TYPE A

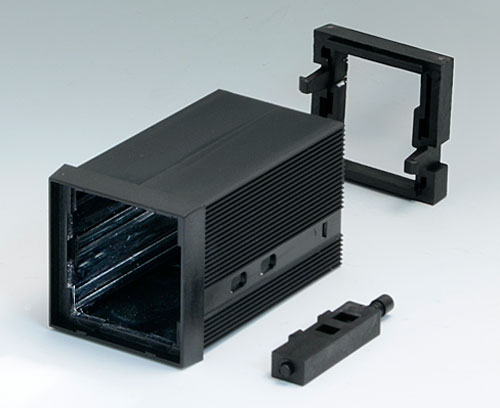

Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

B6112111 Front panel

B6112111

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Chiudi

B6112111

Front panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
43,6x43,6x1,5mm
B6112112 Rear panel

B6112112

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

Chiudi

B6112112

Rear panel
Prodotto aggiunto alla lista
Aluminium
matt anodised
42,2x29,6x1mm
B6112221 Front panel

B6112221

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Chiudi

B6112221

Front panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
43,7x43,7x2mm
B6112222 Rear panel

B6112222

Rear panel Rear panel for DIN-MODULAR CASE 48 x 48.

Supply 1 rear panel

Chiudi

B6112222

Rear panel
Prodotto aggiunto alla lista
PPO (UL 94 V-0)
black RAL 9005
42,3x29,6x1,8mm
B6112331 Front panel

B6112331

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Chiudi

B6112331

Front panel
Prodotto aggiunto alla lista
Acrylic glass
transparent
43,6x43,6x2mm
B6112341 Front panel

B6112341

Front panel Front panel for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Chiudi

B6112341

Front panel
Prodotto aggiunto alla lista
Acrylic glass
red transparent
43,6x43,6x2mm
B6112451 Front panel

B6112451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 48 x 48.

Supply 1 front panel

Chiudi

B6112451

Front panel
Prodotto aggiunto alla lista
PC (IR)
43,7x43,7x2mm

Customising options for B6012021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Standards
Width
48 mm
Height
48 mm
Depth
75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 101 KB
Weight/1 part
49 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italia
