A9413333 SHELL-TYPE CASES V 190, Vers. I

A9413333

SHELL-TYPE CASES V 190, Vers. I

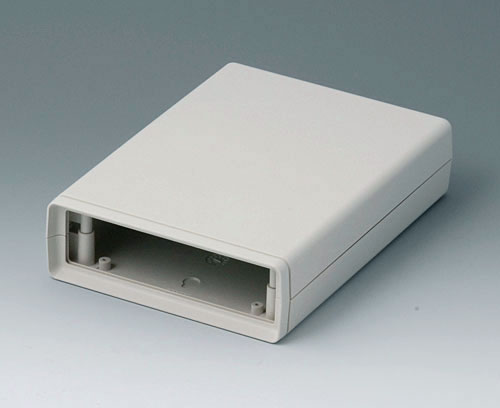

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

A9113113 Front / rear panel V, O 190

A9113113

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

Chiudi

A9113113

Front / rear panel V, O 190
Prodotto aggiunto alla lista
Acrylic glass
red transparent
124,2x33,6x1,5mm
A9114111 Front / rear panel V, O 190

A9114111

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

Chiudi

A9114111

Front / rear panel V, O 190
Prodotto aggiunto alla lista
Aluminium
matt anodised
124,2x33,6x1,5mm

Accessory "protection"

A9113150 Contact-strips V, O, G 190

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Chiudi

A9113150

Contact-strips V, O, G 190
Prodotto aggiunto alla lista
Aluminium

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Chiudi

A9204108

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Chiudi

B1360048

Wall suspension elements
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9413333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
138 mm
Depth
190 mm
Height
45 mm
PCB length, base
174 mm
PCB width, base
118 mm
PCB length, top
174 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.118 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
230 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
