A9408333 SHELL-TYPE CASES V 155, Vers. I

A9408333

SHELL-TYPE CASES V 155, Vers. I

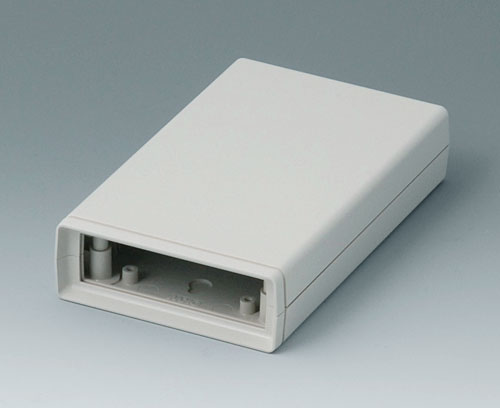

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

A9108113 Front / rear panel V, O 155

A9108113

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Chiudi

A9108113

Front / rear panel V, O 155
Prodotto aggiunto alla lista
Acrylic glass
red transparent
81,9x23,6x1mm
A9109111 Front / rear panel V, O 155

A9109111

Front / rear panel V, O 155 Front panel for SHELL-TYPE CASE V and O. For case A940833.

Supply 1 front panel

Chiudi

A9109111

Front / rear panel V, O 155
Prodotto aggiunto alla lista
Aluminium
matt anodised
81,9x23,6x1mm

Accessory "protection"

A9108120 Contact-strips V, O, G 155

A9108120

Contact-strips V, O, G 155 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Chiudi

A9108120

Contact-strips V, O, G 155
Prodotto aggiunto alla lista
Aluminium

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Chiudi

A9204108

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Chiudi

B1360048

Wall suspension elements
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250807

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250817

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9408333

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
95 mm
Depth
158 mm
Height
33 mm
PCB length, base
143 mm
PCB width, base
77 mm
PCB length, top
143 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.050 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
129 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
