A9406341 SHELL-TYPE CASES G 110, Vers. I

A9406341

SHELL-TYPE CASES G 110, Vers. I

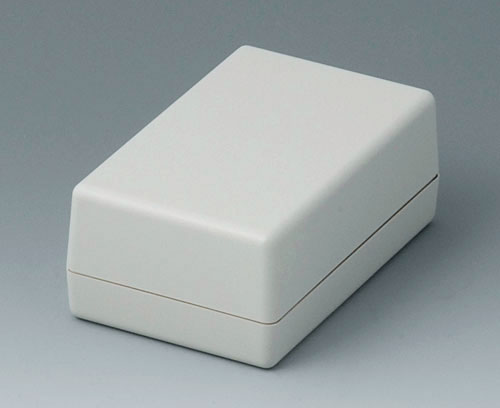

Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

Without battery compartment

Supply

1 top and base part, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

A9106095 Contact-strips V, G 110

A9106095

Contact-strips V, G 110 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Chiudi

A9106095

Contact-strips V, G 110
Prodotto aggiunto alla lista
Aluminium
A9106352 Sealing kit G 110

A9106352

Sealing kit G 110 Inlay O-ring and four rubber disks seal the tongue and groove joint and the four assembly kits.

Supply 1 O-ring, 4 rubber disks

Chiudi

A9106352

Sealing kit G 110
Prodotto aggiunto alla lista

Accessory "wall/holder"

A9204108 Wall mounting brackets

A9204108

Wall mounting brackets Exterior wall mounting elements for the SHELL-TYPE CASES 110, 155 and 190. Fastening to the case by means of the case fixing screws.

Supply 4 wall mounting brackets

Chiudi

A9204108

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6
pebble grey RAL 7032
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Chiudi

B1350048

Wall suspension elements
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Chiudi

A9172107

Belt/Pocket clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250807

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9250817

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9406341

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing kit
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
72 mm
Depth
114 mm
Height
45 mm
PCB length, base
104 mm
PCB width, base
54 mm
PCB length, top
103 mm
PCB width, top
54 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 926 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
103 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
