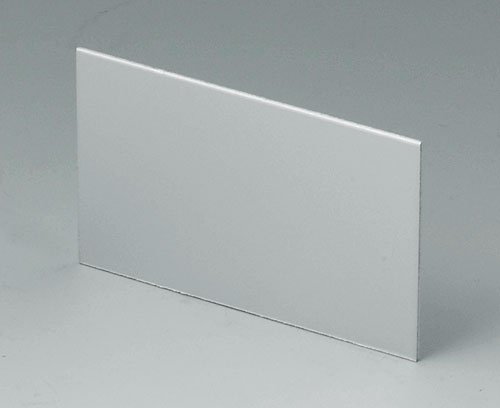

A9107121 Front / rear panel V 110

A9107121

Front / rear panel V 110

Front panel for SHELL-TYPE CASE V and O. For case A940634.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
A9406343 SHELL-TYPE CASES V 110, Vers. I

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406343

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
A9406344 SHELL-TYPE CASES V 110, Vers. II

A9406344

SHELL-TYPE CASES V 110, Vers. II Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 1 x 9 V flat battery (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Chiudi

A9406344

SHELL-TYPE CASES V 110, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm

Customising options for A9107121

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
matt anodised
Width
59,3 mm
Height
37 mm
Thickness
1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5,7 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
