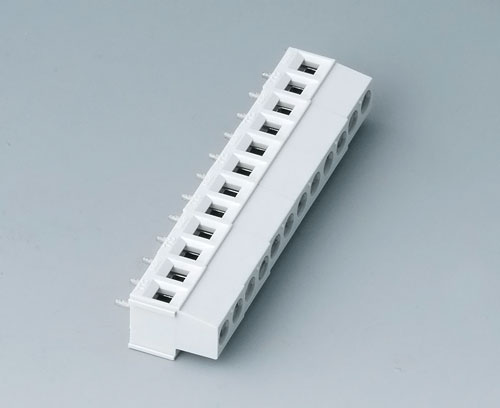

B6803650 Terminal block, block 5.08

B6803650

Terminal block, block 5.08

PCB terminal block, 5.08. 12-pin.

Supply

1 piece

  • Usato per
B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703100

RAILTEC C, 4 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703102

RAILTEC C, 4 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703104 RAILTEC C, 4 modules, Vers. III

B6703104

RAILTEC C, 4 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703104

RAILTEC C, 4 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703106

RAILTEC C, 4 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey
Pitch
5.08 mm
Poles
12
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
