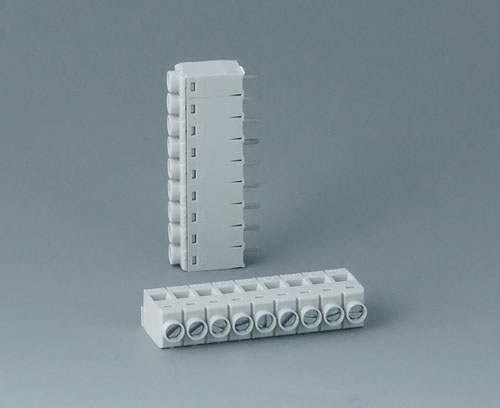

B6608111 Terminal block, block 5.0

B6608111

Terminal block, block 5.0

PCB terminal block, 5.0. 9-pin.

Supply

1 piece

  • Usato per

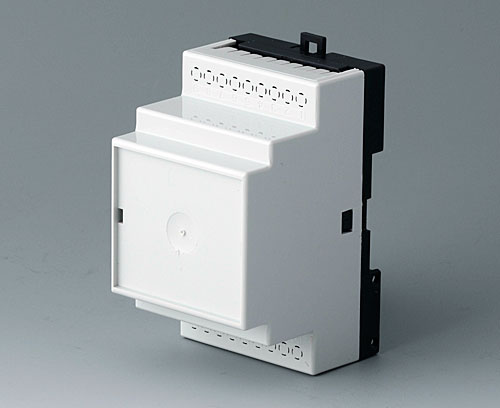

B6502110

B6502110

RAILTEC B, 3 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502110

RAILTEC B, 3 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm

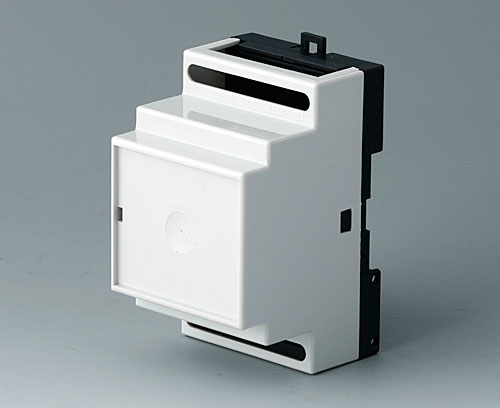

B6502111

B6502111

RAILTEC B, 3 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502111

RAILTEC B, 3 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm

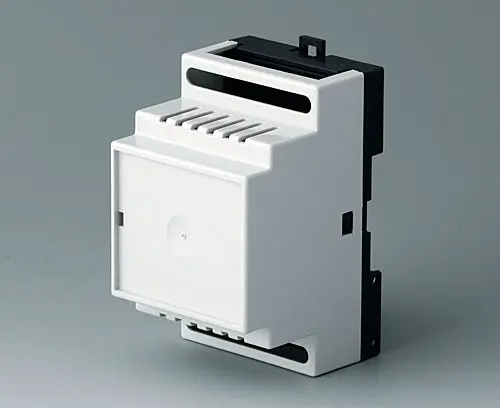

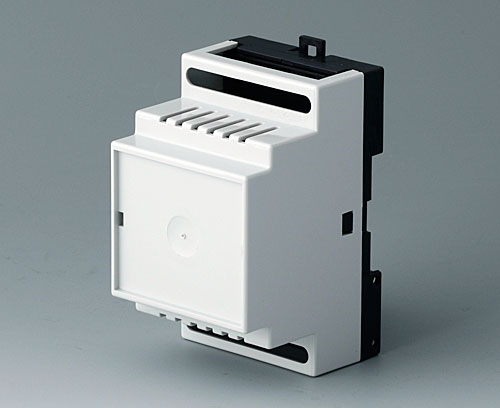

B6502114

B6502114

RAILTEC B, 3 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (18 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502114

RAILTEC B, 3 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm
B6502117

B6502117

RAILTEC B, 3 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH 5. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502117

RAILTEC B, 3 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm

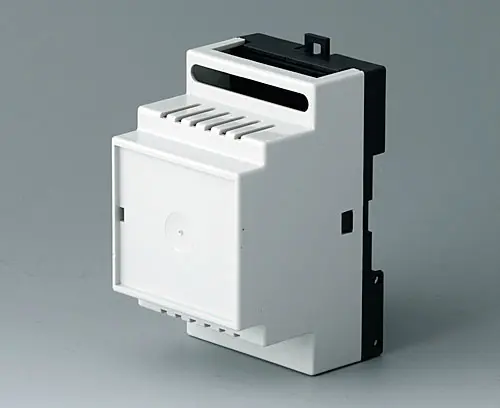

B6502118

B6502118

RAILTEC B, 3 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (9 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502118

RAILTEC B, 3 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm

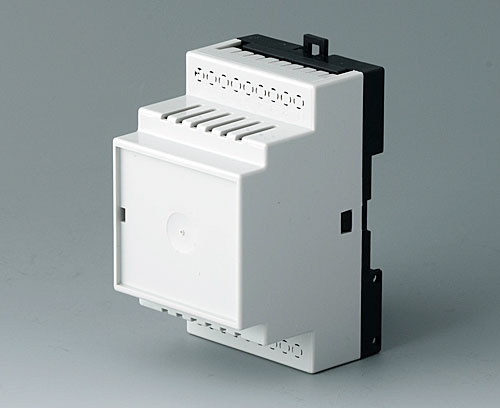

B6502119

B6502119

RAILTEC B, 3 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 18 terminal blocks 5.0 or 2 plug headers 9-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502119

RAILTEC B, 3 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x86x58mm

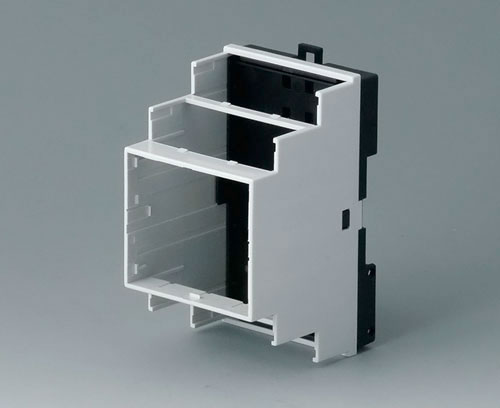

B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502121

RAILTEC B, 3 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x90x58mm

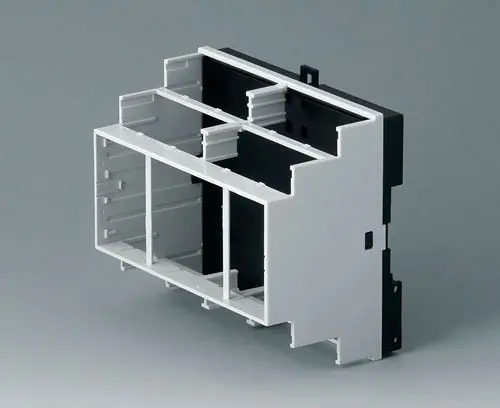

B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504121

RAILTEC B, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm

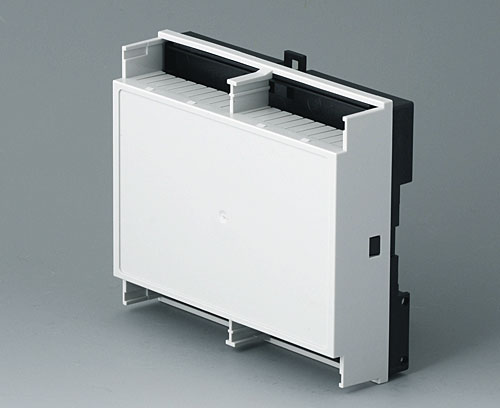

B6504229 RAILTEC B, 6 modules, Vers. low profile

B6504229

RAILTEC B, 6 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 4 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504229

RAILTEC B, 6 modules, Vers. low profile
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x89,6x31,25mm

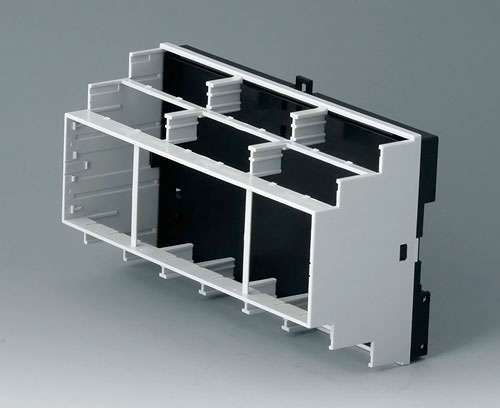

B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505121

RAILTEC B, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm

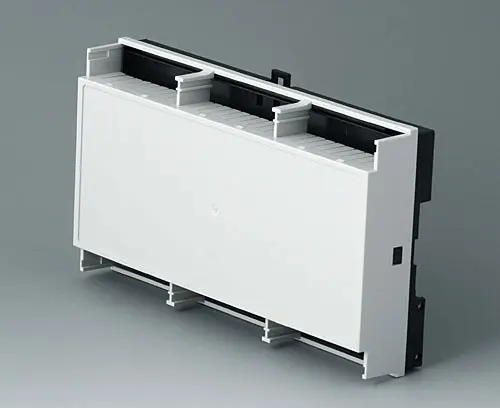

B6505229 RAILTEC B, 9 modules, Vers. low profile

B6505229

RAILTEC B, 9 modules, Vers. low profile Enclosure with open connection sides in flat version - for max. 6 terminal guards in flat version (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505229

RAILTEC B, 9 modules, Vers. low profile
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157,5x89,6x31,25mm

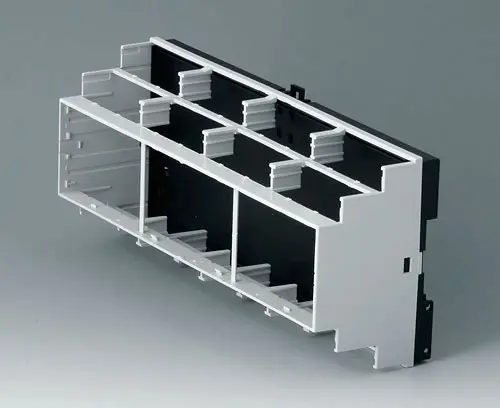

B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506121

RAILTEC B, 12 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.0 mm
Poles
9
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
