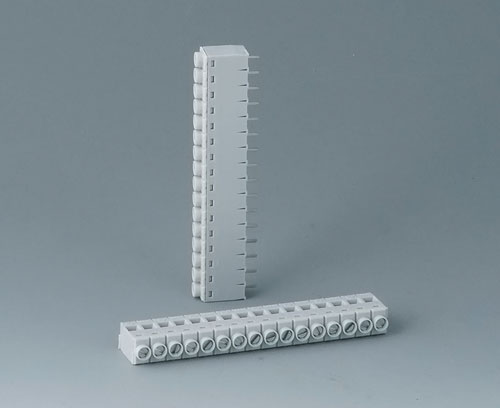

B6606111 Terminal block, block 5.0

B6606111

Terminal block, block 5.0

PCB terminal block, 5.0. 16-pin.

Supply

1 piece

  • Usato per
B6506110 RAILTEC B, 12 modules, Vers. V

B6506110

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506110

RAILTEC B, 12 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

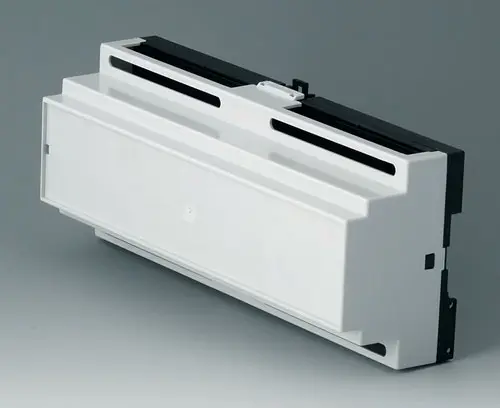

B6506111 RAILTEC B, 12 modules, Vers. I

B6506111

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506111

RAILTEC B, 12 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506114 RAILTEC B, 12 modules, Vers. I

B6506114

RAILTEC B, 12 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (64 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506114

RAILTEC B, 12 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

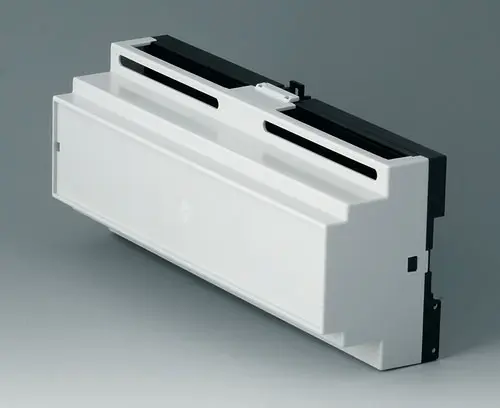

B6506117 RAILTEC B, 12 modules, Vers. IV

B6506117

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506117

RAILTEC B, 12 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

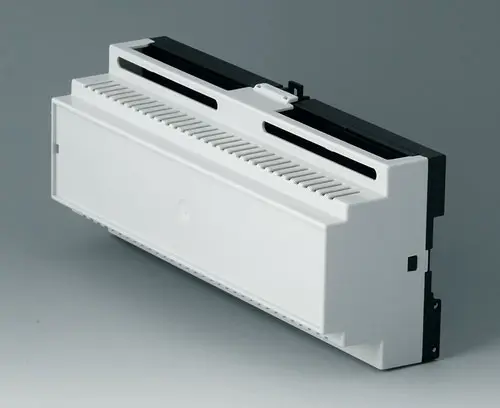

B6506118 RAILTEC B, 12 modules, Vers. IV

B6506118

RAILTEC B, 12 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (32 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506118

RAILTEC B, 12 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6506119 RAILTEC B, 12 modules, Vers. V

B6506119

RAILTEC B, 12 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 64 terminal blocks 5.0 or plug headers 4 x 8 poles and 4 x 7 poles

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506119

RAILTEC B, 12 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.0 mm
Poles
16
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
16 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
