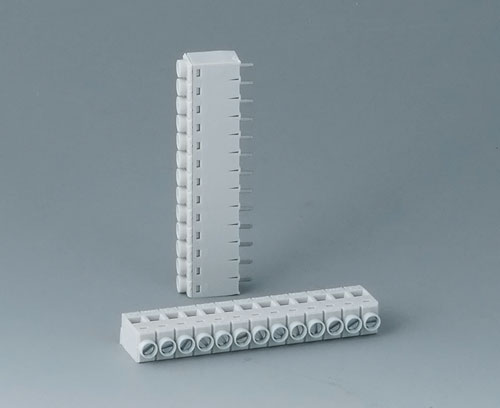

B6605111 Terminal block, block 5.0

B6605111

Terminal block, block 5.0

PCB terminal block, 5.0. 13-pin.

Supply

1 piece

  • Usato per
B6505110 RAILTEC B, 9 modules, Vers. V

B6505110

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505110

RAILTEC B, 9 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

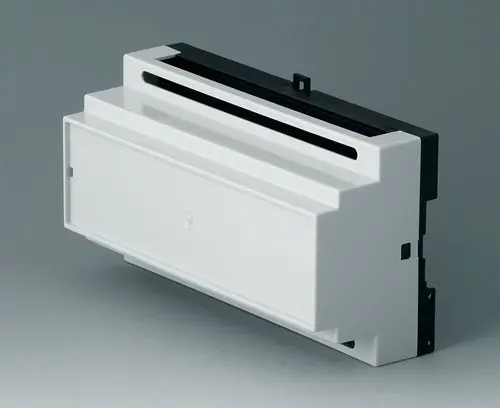

B6505111 RAILTEC B, 9 modules, Vers. I

B6505111

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505111

RAILTEC B, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

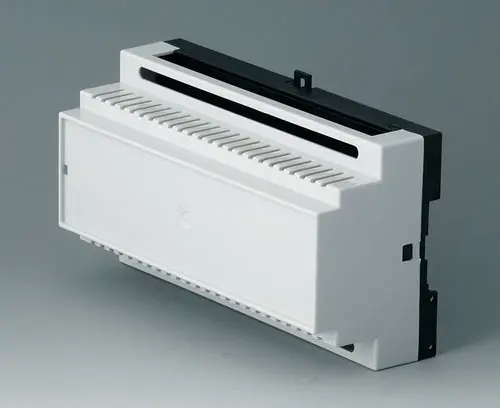

B6505114 RAILTEC B, 9 modules, Vers. I

B6505114

RAILTEC B, 9 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (52 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505114

RAILTEC B, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

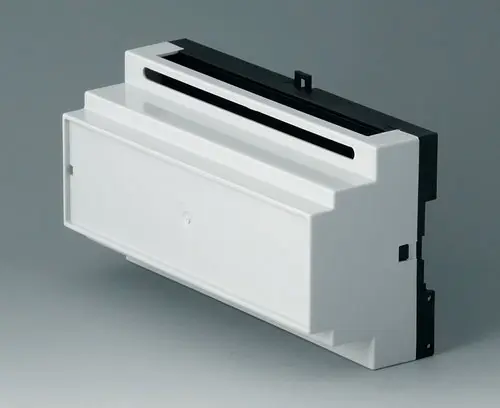

B6505117 RAILTEC B, 9 modules, Vers. IV

B6505117

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505117

RAILTEC B, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

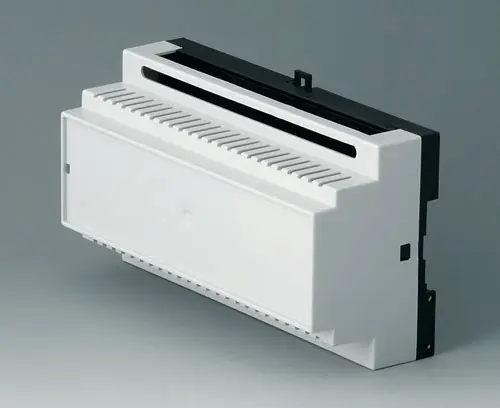

B6505118 RAILTEC B, 9 modules, Vers. IV

B6505118

RAILTEC B, 9 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505118

RAILTEC B, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
B6505119 RAILTEC B, 9 modules, Vers. V

B6505119

RAILTEC B, 9 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505119

RAILTEC B, 9 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm

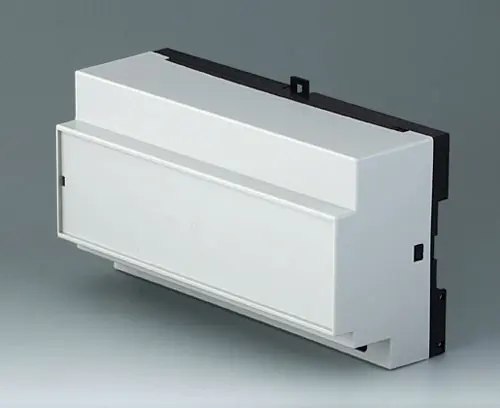

B6515111 RAILTEC B, 9 modules, Vers. XI

B6515111

RAILTEC B, 9 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (26 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6515111

RAILTEC B, 9 modules, Vers. XI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x86x59mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.0 mm
Poles
13
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
Romania
