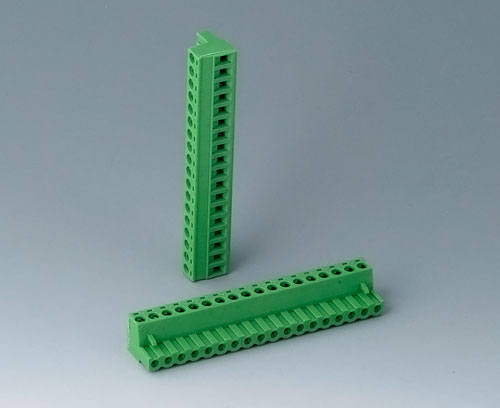

B6604223 Plug header, block 5.08

B6604223

Plug header, block 5.08

Female terminal block, 5.08. 18-pin.

Supply

1 piece

  • Usato per
B6504110 RAILTEC B, 6 modules, Vers. V

B6504110

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504110

RAILTEC B, 6 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504112 RAILTEC B, 6 modules, Vers. II

B6504112

RAILTEC B, 6 modules, Vers. II Case corresponds to DIN 43880,size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504112

RAILTEC B, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504115 RAILTEC B, 6 modules, Vers. II

B6504115

RAILTEC B, 6 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504115

RAILTEC B, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6504119 RAILTEC B, 6 modules, Vers. V

B6504119

RAILTEC B, 6 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 36 terminal blocks 5.0 or 2 plug headers 18-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504119

RAILTEC B, 6 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
B6514112 RAILTEC B, 6 modules, Vers. XII

B6514112

RAILTEC B, 6 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (2 x 18-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6514112

RAILTEC B, 6 modules, Vers. XII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x86x59mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.08 mm
Poles
18
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
29 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
