B6603223 Plug header, block 5.08

B6603223

Plug header, block 5.08

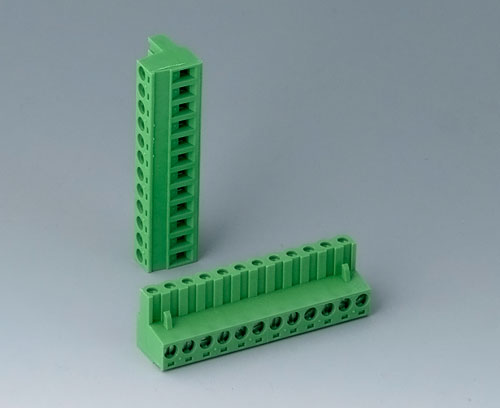

Female terminal block, 5.08. 12-pin.

Supply

1 piece

  • Usato per
B6503110 RAILTEC B, 4 modules, Vers. V

B6503110

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6503110

RAILTEC B, 4 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503112 RAILTEC B, 4 modules, Vers. II

B6503112

RAILTEC B, 4 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6503112

RAILTEC B, 4 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503115 RAILTEC B, 4 modules, Vers. II

B6503115

RAILTEC B, 4 modules, Vers. II Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6503115

RAILTEC B, 4 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6503119 RAILTEC B, 4 modules, Vers. V

B6503119

RAILTEC B, 4 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 24 terminal blocks 5.0 or 2 plug headers 12-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6503119

RAILTEC B, 4 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6513112 RAILTEC B, 4 modules, Vers. XII

B6513112

RAILTEC B, 4 modules, Vers. XII Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For plug header (12-poles) blocks 5.0 / 5.08

Supply 1 base part with locking clip, 1 top part

Chiudi

B6513112

RAILTEC B, 4 modules, Vers. XII
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
70x86x58mm
B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703100

RAILTEC C, 4 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703102

RAILTEC C, 4 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703104 RAILTEC C, 4 modules, Vers. III

B6703104

RAILTEC C, 4 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703104

RAILTEC C, 4 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703106

RAILTEC C, 4 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6704100 RAILTEC C, 5 modules, Vers. I

B6704100

RAILTEC C, 5 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704100

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704101 RAILTEC C, 5 modules, Vers. I

B6704101

RAILTEC C, 5 modules, Vers. I Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704101

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704102 RAILTEC C, 5 modules, Vers. II

B6704102

RAILTEC C, 5 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704102

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704103 RAILTEC C, 5 modules, Vers. II

B6704103

RAILTEC C, 5 modules, Vers. II Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704103

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704104 RAILTEC C, 5 modules, Vers. III

B6704104

RAILTEC C, 5 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704104

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704105 RAILTEC C, 5 modules, Vers. III

B6704105

RAILTEC C, 5 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704105

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704106 RAILTEC C, 5 modules, Vers. IV

B6704106

RAILTEC C, 5 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704106

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704107 RAILTEC C, 5 modules, Vers. IV

B6704107

RAILTEC C, 5 modules, Vers. IV Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704107

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.08 mm
Poles
12
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
20 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
