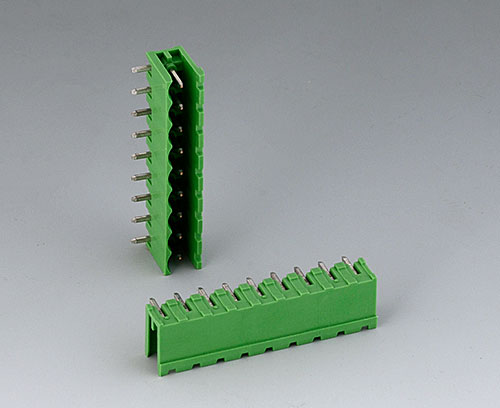

B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08

Male terminal block, 5.08. 9-pin.

Supply

1 piece

  • Usato per
B6502121 RAILTEC B, 3 modules, Vers. VI

B6502121

RAILTEC B, 3 modules, Vers. VI Enclosure with open connection sides - for max. 4 terminal guards in flat version, 2 terminal guards in high version or 2 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6502121

RAILTEC B, 3 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
52,5x90x58mm
B6504121 RAILTEC B, 6 modules, Vers. VI

B6504121

RAILTEC B, 6 modules, Vers. VI Enclosure with open connection sides - for max. 8 terminal guards in flat version, 4 terminal guards in high version or 4 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6504121

RAILTEC B, 6 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
105x90x58mm
B6505121 RAILTEC B, 9 modules, Vers. VI

B6505121

RAILTEC B, 9 modules, Vers. VI Enclosure with open connection sides - for max. 12 terminal guards in flat version, 6 terminal guards in high version or 6 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6505121

RAILTEC B, 9 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
157x90x58mm
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Chiudi

B6506121

RAILTEC B, 12 modules, Vers. VI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm
B6702100 RAILTEC C, 3 modules, Vers. I

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702100

RAILTEC C, 3 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm

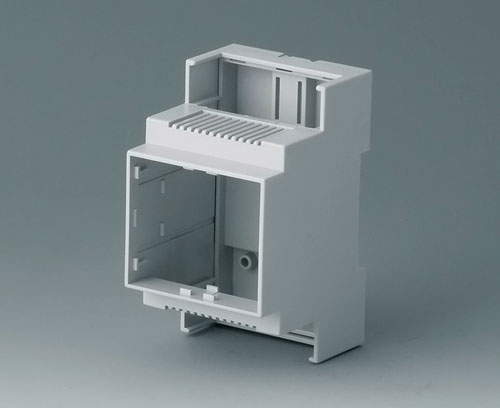

B6702102 RAILTEC C, 3 modules, Vers. II

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702102

RAILTEC C, 3 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm

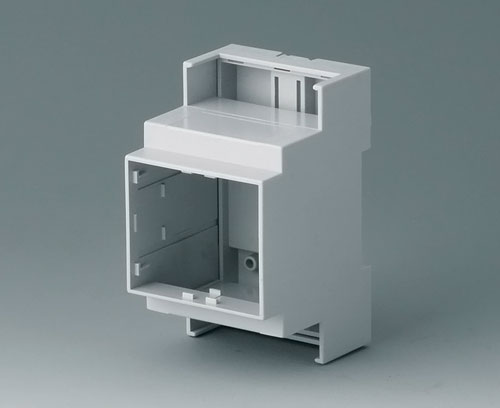

B6702104 RAILTEC C, 3 modules, Vers. III

B6702104

RAILTEC C, 3 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702104

RAILTEC C, 3 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm

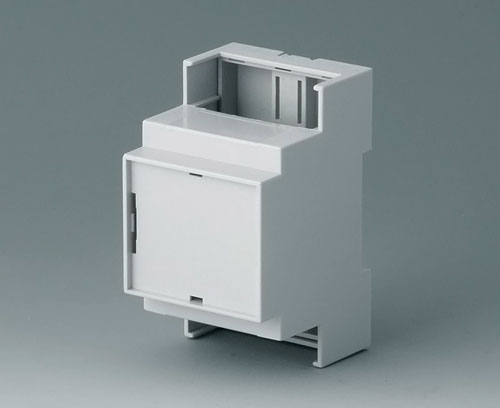

B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702106

RAILTEC C, 3 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm

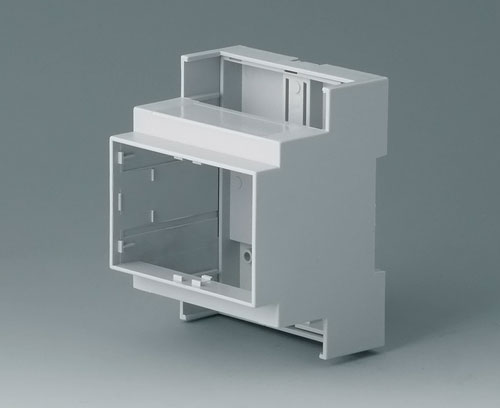

B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703100

RAILTEC C, 4 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm

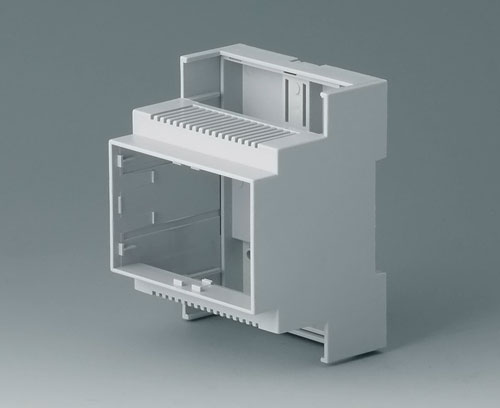

B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703102

RAILTEC C, 4 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm

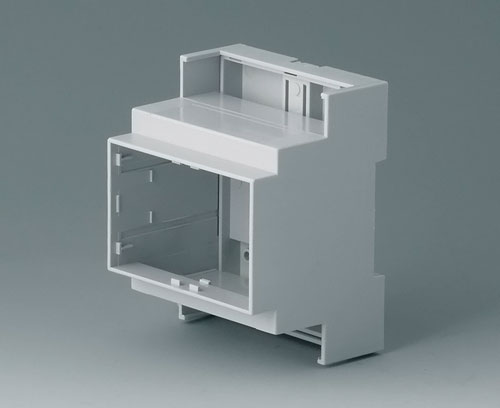

B6703104 RAILTEC C, 4 modules, Vers. III

B6703104

RAILTEC C, 4 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703104

RAILTEC C, 4 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm
B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6703106

RAILTEC C, 4 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
71x90x58mm

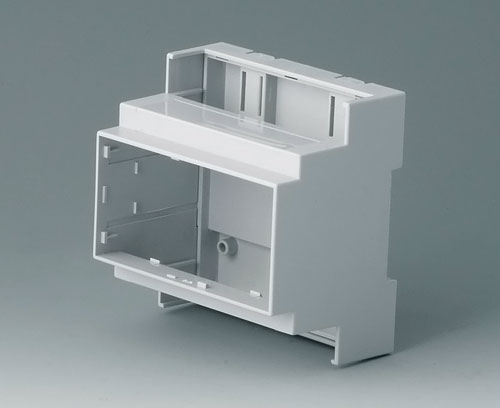

B6704100 RAILTEC C, 5 modules, Vers. I

B6704100

RAILTEC C, 5 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704100

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704101 RAILTEC C, 5 modules, Vers. I

B6704101

RAILTEC C, 5 modules, Vers. I Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704101

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm

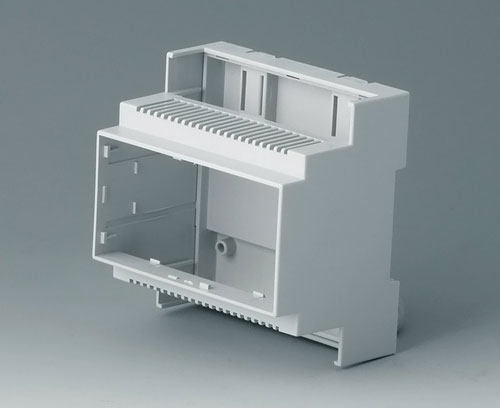

B6704102 RAILTEC C, 5 modules, Vers. II

B6704102

RAILTEC C, 5 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704102

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704103 RAILTEC C, 5 modules, Vers. II

B6704103

RAILTEC C, 5 modules, Vers. II Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704103

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm

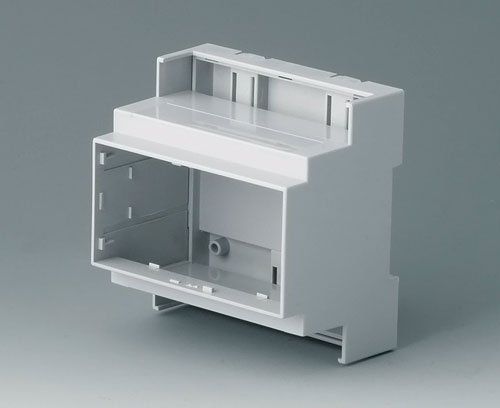

B6704104 RAILTEC C, 5 modules, Vers. III

B6704104

RAILTEC C, 5 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704104

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm

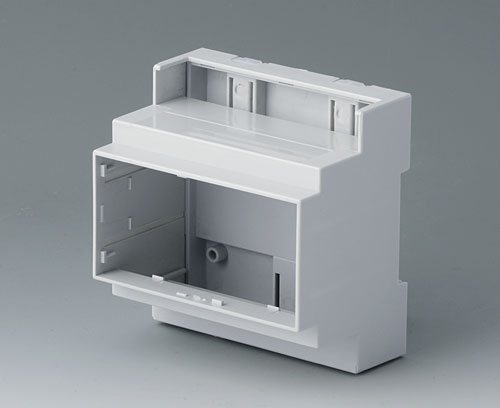

B6704105 RAILTEC C, 5 modules, Vers. III

B6704105

RAILTEC C, 5 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704105

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm

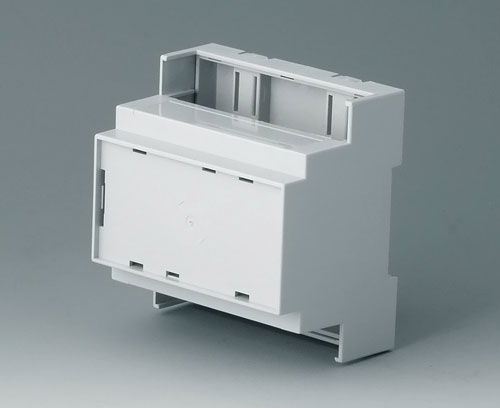

B6704106 RAILTEC C, 5 modules, Vers. IV

B6704106

RAILTEC C, 5 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704106

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704107 RAILTEC C, 5 modules, Vers. IV

B6704107

RAILTEC C, 5 modules, Vers. IV Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704107

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6705100 RAILTEC C, 6 modules, Vers. I

B6705100

RAILTEC C, 6 modules, Vers. I Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705100

RAILTEC C, 6 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705101 RAILTEC C, 6 modules, Vers. I

B6705101

RAILTEC C, 6 modules, Vers. I Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705101

RAILTEC C, 6 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705102 RAILTEC C, 6 modules, Vers. II

B6705102

RAILTEC C, 6 modules, Vers. II Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories).Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705102

RAILTEC C, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705103 RAILTEC C, 6 modules, Vers. II

B6705103

RAILTEC C, 6 modules, Vers. II Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705103

RAILTEC C, 6 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705104 RAILTEC C, 6 modules, Vers. III

B6705104

RAILTEC C, 6 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705104

RAILTEC C, 6 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705105 RAILTEC C, 6 modules, Vers. III

B6705105

RAILTEC C, 6 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705105

RAILTEC C, 6 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705106 RAILTEC C, 6 modules, Vers. IV

B6705106

RAILTEC C, 6 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705106

RAILTEC C, 6 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705107 RAILTEC C, 6 modules, Vers. IV

B6705107

RAILTEC C, 6 modules, Vers. IV Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version front closed, connection side with free through passage.

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705107

RAILTEC C, 6 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106x90x58mm
B6705700 RAILTEC C, 6 modules, high

B6705700

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705700

RAILTEC C, 6 modules, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
107x90x114mm
B6705706 RAILTEC C, 6 modules, high

B6705706

RAILTEC C, 6 modules, high Enclosure with 2 sides open for connection and with high top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705706

RAILTEC C, 6 modules, high
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
107x90x114mm
B6705800 RAILTEC C, 6 modules, flat, Vers. I

B6705800

RAILTEC C, 6 modules, flat, Vers. I Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*ridges give more stability during transport - easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705800

RAILTEC C, 6 modules, flat, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106,2x90x32mm
B6705806 RAILTEC C, 6 modules, flat, Vers. IV

B6705806

RAILTEC C, 6 modules, flat, Vers. IV Enclosure with 2 sides open for connection and with flat top for max. 4 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6705806

RAILTEC C, 6 modules, flat, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
106,2x90x32mm
B6706100 RAILTEC C, 9 modules, Vers. I

B6706100

RAILTEC C, 9 modules, Vers. I Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706100

RAILTEC C, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706101 RAILTEC C, 9 modules, Vers. I

B6706101

RAILTEC C, 9 modules, Vers. I Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706101

RAILTEC C, 9 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706102 RAILTEC C, 9 modules, Vers. II

B6706102

RAILTEC C, 9 modules, Vers. II Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706102

RAILTEC C, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706103 RAILTEC C, 9 modules, Vers. II

B6706103

RAILTEC C, 9 modules, Vers. II Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706103

RAILTEC C, 9 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706104 RAILTEC C, 9 modules, Vers. III

B6706104

RAILTEC C, 9 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706104

RAILTEC C, 9 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706105 RAILTEC C, 9 modules, Vers. III

B6706105

RAILTEC C, 9 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706105

RAILTEC C, 9 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706106 RAILTEC C, 9 modules, Vers. IV

B6706106

RAILTEC C, 9 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 6 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706106

RAILTEC C, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6706107 RAILTEC C, 9 modules, Vers. IV

B6706107

RAILTEC C, 9 modules, Vers. IV Enclosure with 1 side open for connection - for max. 3 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6706107

RAILTEC C, 9 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
160x90x58mm
B6707100 RAILTEC C, 12 modules, Vers. I

B6707100

RAILTEC C, 12 modules, Vers. I Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6707100

RAILTEC C, 12 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
210x90x58mm
B6707102 RAILTEC C, 12 modules, Vers. II

B6707102

RAILTEC C, 12 modules, Vers. II Enclosure with 2 sides open for connection - for max. 8 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6707102

RAILTEC C, 12 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
210x90x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.08 mm
Poles
9
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
