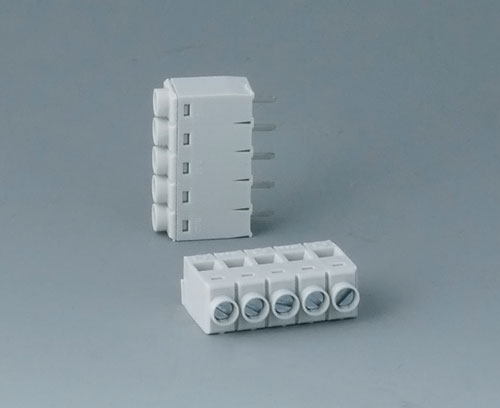

B6601111 Terminal block, block 5.0

B6601111

Terminal block, block 5.0

PCB terminal block, 5.0. 5-pin.

Supply

1 piece

  • Usato per
B6501110 RAILTEC B, 2 modules, Vers. V

B6501110

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501110

RAILTEC B, 2 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501111 RAILTEC B, 2 modules, Vers. I

B6501111

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501111

RAILTEC B, 2 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501114 RAILTEC B, 2 modules, Vers. I

B6501114

RAILTEC B, 2 modules, Vers. I Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (10 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501114

RAILTEC B, 2 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501117 RAILTEC B, 2 modules, Vers. IV

B6501117

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part without ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501117

RAILTEC B, 2 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501118 RAILTEC B, 2 modules, Vers. IV

B6501118

RAILTEC B, 2 modules, Vers. IV Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max., only on bottom)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501118

RAILTEC B, 2 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6501119 RAILTEC B, 2 modules, Vers. V

B6501119

RAILTEC B, 2 modules, Vers. V Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs.

Version With perforations for max. 10 terminal blocks 5.0 or 2 plug headers 5-pin

Supply 1 base part with locking clip, 1 top part

Chiudi

B6501119

RAILTEC B, 2 modules, Vers. V
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
B6511111 RAILTEC B, 2 modules, Vers. XI

B6511111

RAILTEC B, 2 modules, Vers. XI Enclosure for applications where larger components/assemblies need to be fitted inside. Different connection levels flat or high for individual configuration. Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing pillars for the PCB. Vertical and horizontal guides for additional PCBs.

Version For terminal blocks 5.0 / 5.08 (5 terminals max.)

Supply 1 base part with locking clip, 1 top part

Chiudi

B6511111

RAILTEC B, 2 modules, Vers. XI
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey RAL 7035
35x86x58mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Pitch
5.0 mm
Poles
5
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5 g
Customs tariff number
(OKW product)
85369095
Country of manufacture
U.K.
