A9193031 Spring contact

A9193031

Spring contact

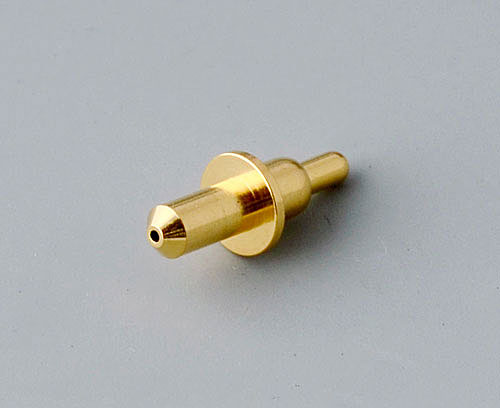

Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 15 A. 1.5 mm stroke, 1,7 N. Extremely low contact resistance.

Supply

1 spring contact

  • Usato per
A9005107 DATEC-COMPACT S

A9005107

DATEC-COMPACT S 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9005107

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 65
A9005108 DATEC-COMPACT S

A9005108

DATEC-COMPACT S 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9005108

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 65
A9005117 DATEC-COMPACT S

A9005117

DATEC-COMPACT S 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9005117

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 41
A9005118 DATEC-COMPACT S

A9005118

DATEC-COMPACT S 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9005118

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 41
A9005207 DATEC-COMPACT S

A9005207

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9005207

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 65
A9005208 DATEC-COMPACT S

A9005208

DATEC-COMPACT S 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9005208

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 65
A9005217 DATEC-COMPACT S

A9005217

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9005217

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
136x74x32mm
IP 41
A9005218 DATEC-COMPACT S

A9005218

DATEC-COMPACT S 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AAA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9005218

DATEC-COMPACT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
136x74x32mm
IP 41
A9006107 DATEC-COMPACT M

A9006107

DATEC-COMPACT M 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9006107

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x92x39mm
IP 65
A9006108 DATEC-COMPACT M

A9006108

DATEC-COMPACT M 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9006108

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
172x92x39mm
IP 65
A9006117 DATEC-COMPACT M

A9006117

DATEC-COMPACT M 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9006117

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x92x39mm
IP 41
A9006118 DATEC-COMPACT M

A9006118

DATEC-COMPACT M 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9006118

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
172x92x39mm
IP 41
A9006207 DATEC-COMPACT M

A9006207

DATEC-COMPACT M 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9006207

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x92x39mm
IP 65
A9006208 DATEC-COMPACT M

A9006208

DATEC-COMPACT M 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9006208

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
172x92x39mm
IP 65
A9006217 DATEC-COMPACT M

A9006217

DATEC-COMPACT M 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9006217

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
172x92x39mm
IP 41
A9006218 DATEC-COMPACT M

A9006218

DATEC-COMPACT M 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9006218

DATEC-COMPACT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
172x92x39mm
IP 41
A9007107 DATEC-COMPACT L

A9007107

DATEC-COMPACT L 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007107

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 65
A9007108 DATEC-COMPACT L

A9007108

DATEC-COMPACT L 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007108

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
206x110x47mm
IP 65
A9007117 DATEC-COMPACT L

A9007117

DATEC-COMPACT L 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007117

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 41
A9007118 DATEC-COMPACT L

A9007118

DATEC-COMPACT L 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Chiudi

A9007118

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
206x110x47mm
IP 41
A9007207 DATEC-COMPACT L

A9007207

DATEC-COMPACT L 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007207

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 65
A9007208 DATEC-COMPACT L

A9007208

DATEC-COMPACT L 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007208

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
206x110x47mm
IP 65
A9007217 DATEC-COMPACT L

A9007217

DATEC-COMPACT L 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007217

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
206x110x47mm
IP 41
A9007218 DATEC-COMPACT L

A9007218

DATEC-COMPACT L 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Chiudi

A9007218

DATEC-COMPACT L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
206x110x47mm
IP 41
A9105507 Station S

A9105507

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9105507

Station S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9105508 Station S

A9105508

Station S Base for the practical storage of DATEC-COMPACT S, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9105508

Station S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
A9106507 Station M

A9106507

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9106507

Station M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9106508 Station M

A9106508

Station M Base for the practical storage of DATEC-COMPACT M, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9106508

Station M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
A9107507 Station L

A9107507

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data.
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9107507

Station L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
A9107508 Station L

A9107508

Station L Base for the practical storage of DATEC-COMPACT L, with and without battery compartment. Ideal for charging mobile devices and transmitting data. Domes for mounting PCBs and components. Recesses for spring contacts (accessories).

Supply Station with bottom panel, rubber feet, assembly kit

Chiudi

A9107508

Station L
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
lava
A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Chiudi

A9193030

Contact pin
Prodotto aggiunto alla lista
gold-plated
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
gold-plated
Poles
1
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 47 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
74198010
Country of manufacture
U.S.A.
