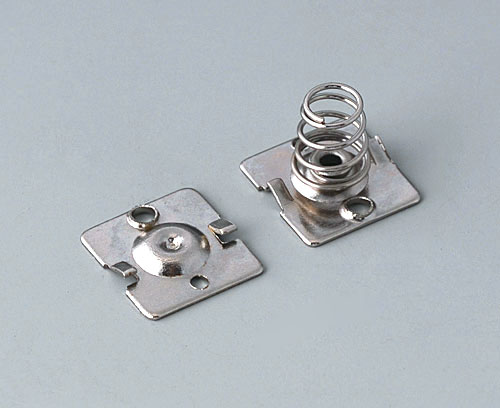

A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA

For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply

1 single contact positive, 1 single contact negative

  • Usato per
A9092107 DIATEC XS

A9092107

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Chiudi

A9092107

DIATEC XS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x37x155mm
IP 40

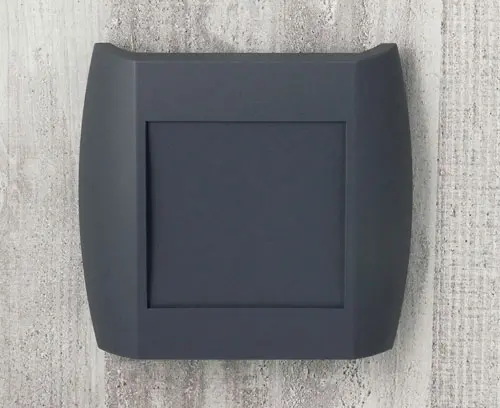

A9092108 DIATEC XS

A9092108

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Chiudi

A9092108

DIATEC XS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
150x37x155mm
IP 40
  • Dati tecnici
  • Purchasing Data
Materiale
Colore
nickel-plated
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
3 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
U.S.A.
