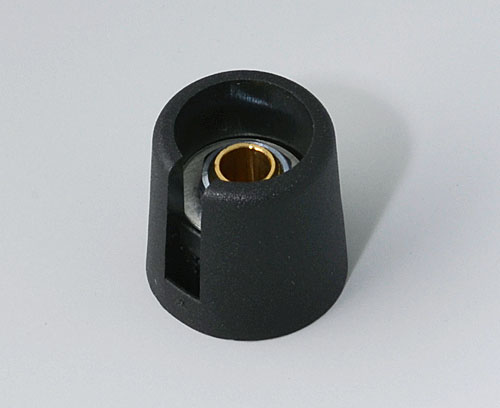

A3016049 COM-KNOBS 16, with recess

A3016049

COM-KNOBS 16, with recess

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply

1 COM-KNOB (with recess)

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A3216003 Cover 16

A3216003

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216003

Cover 16
Prodotto aggiunto alla lista
PA 6
coral
A3216004 Cover 16

A3216004

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216004

Cover 16
Prodotto aggiunto alla lista
PA 6
beach
A3216005 Cover 16

A3216005

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216005

Cover 16
Prodotto aggiunto alla lista
PA 6
lagoon
A3216006 Cover 16

A3216006

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216006

Cover 16
Prodotto aggiunto alla lista
PA 6
sky
A3216007 Cover 16

A3216007

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216007

Cover 16
Prodotto aggiunto alla lista
PA 6
mineral
A3216009 Cover 16

A3216009

Cover 16 Suitable for COM-KNOB 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A3216009

Cover 16
Prodotto aggiunto alla lista
PA 6
nero
A3316003 Peak 16

A3316003

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316003

Peak 16
Prodotto aggiunto alla lista
PA 6
coral
A3316004 Peak 16

A3316004

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316004

Peak 16
Prodotto aggiunto alla lista
PA 6
beach
A3316005 Peak 16

A3316005

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316005

Peak 16
Prodotto aggiunto alla lista
PA 6
lagoon
A3316006 Peak 16

A3316006

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316006

Peak 16
Prodotto aggiunto alla lista
PA 6
sky
A3316007 Peak 16

A3316007

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316007

Peak 16
Prodotto aggiunto alla lista
PA 6
mineral
A3316009 Peak 16

A3316009

Peak 16 Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Chiudi

A3316009

Peak 16
Prodotto aggiunto alla lista
PA 6
nero

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista
A7516000 Nut cover 16, without line

A7516000

Nut cover 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Supply 1 nut cover

Chiudi

A7516000

Nut cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A3016049

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
nero
Diameter
16 mm
Height
16 mm
Bore hole
4 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 573 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
