B4210127 CARRYTEC M slim version

B4210127

CARRYTEC M slim version

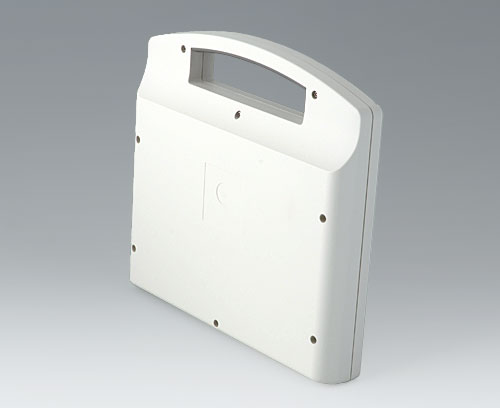

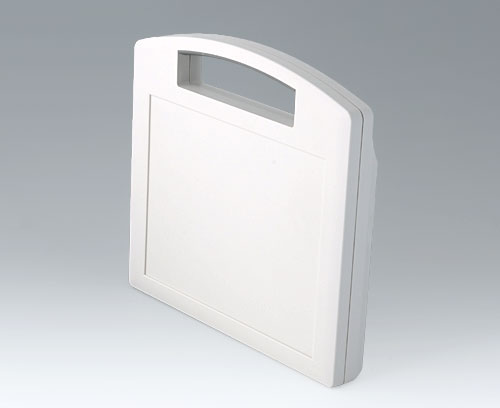

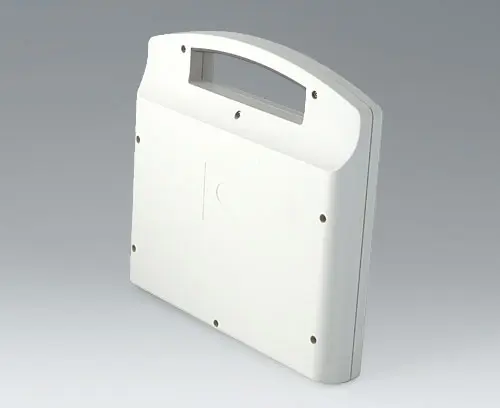

Strong plastic enclosure with handle, slim version. Ideal for the installation of tablet computers and the like, which have modest space requirements and can be carried comfortably and securely in the Carrytec.

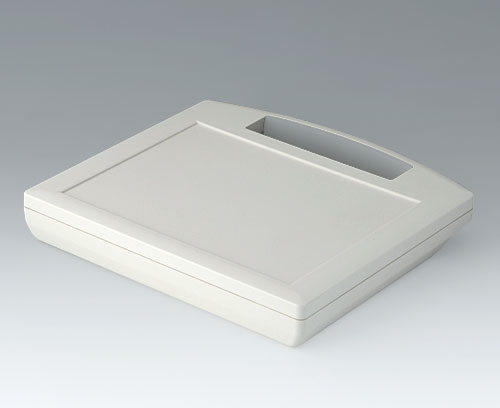

The top part is identical with that of the larger enclosure versions; only the bottom part is flatter.
Top part with recessed surface for using membrane keyboards. Attachment domes for PCBs and components in the top and bottom parts. Interface installation at the rear, for example for support arm applications, ensures orderly cable routing through enclosure connection.

Supply

Top and bottom parts, TPE handle pad, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

B4310001 Sealing M

B4310001

Sealing M Application: for increasing the protection class, of CARRYTEC M.

Supply 1 sealing

Chiudi

B4310001

Sealing M
Prodotto aggiunto alla lista

Accessory "wall/holder"

B4308237 Holding clamps

B4308237

Holding clamps For hanging the enclosure from round tubes Ø 32 mm and standard equipment rails DIN EN ISO 19054 (25 x 10 mm). 2 locating holes Ø 2.4 mm are required. For attachment, 2 stainless steel Torx screws Ø 3 x 8 mm (Torx 10) are included in the set.

Supply 1 holding clamp, assembly kit

Chiudi

B4308237

Holding clamps
Prodotto aggiunto alla lista
PA 6
off-white RAL 9002

Accessory "screws"

A0325080 Self-tapping screws 2.5 x 8 mm (PZ1)

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325080

Self-tapping screws 2.5 x 8 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista

Customising options for B4210127

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Handle pad
Protection class
IP 54 opt.
Necessary accessories: sealing kit
Colore
Enclosure off-white RAL 9002,
Handle pad volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
270 mm
Height
247 mm
Depth
42 mm
PCB length, base
258 mm
PCB width, base
176 mm
PCB length, top
259 mm
PCB width, top
184 mm
Keypad length
219,5 mm
Keypad width
162,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 3.068 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
538 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
