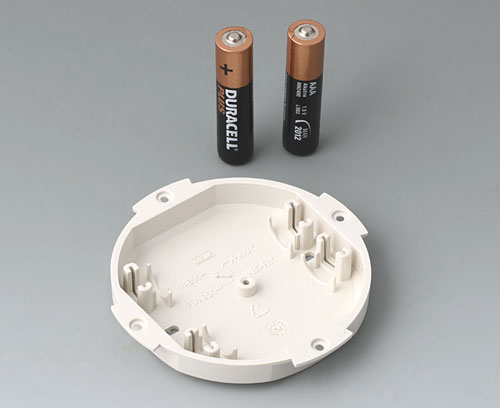

B5111107 Battery compartment, 2 x AAA

B5111107

Battery compartment, 2 x AAA

Application: For 2 x 1.5 V micro cells (AAA).

Supply

1 battery compartment, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

B5010007 Bottom and top part R110 F

B5010007

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Chiudi

B5010007

Bottom and top part R110 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
⌀110x30mm
B5010107 Bottom and top part R110 H

B5010107

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Chiudi

B5010107

Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010207 Bottom and top part R110 F

B5010207

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Chiudi

B5010207

Bottom and top part R110 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
⌀110x38mm
B5010307 Bottom and top part R110 H

B5010307

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Chiudi

B5010307

Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
⌀110x41mm
B5011217 Base 30°

B5011217

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

Chiudi

B5011217

Base 30°
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B5011317 Base 55°

B5011317

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

Chiudi

B5011317

Base 55°
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B5011857 Battery compartment lid

B5011857

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Chiudi

B5011857

Battery compartment lid
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B5012207 Bottom and top part S110F

B5012207

Bottom and top part S110F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Chiudi

B5012207

Bottom and top part S110F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
110x110x38mm
B5015007 Bottom and top part O160 F

B5015007

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Chiudi

B5015007

Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
160x110x30mm
B5015107 Bottom and top part O160 H

B5015107

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Chiudi

B5015107

Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015207 Bottom and top part O160 F

B5015207

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Chiudi

B5015207

Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5015307 Bottom and top part O160 H

B5015307

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Chiudi

B5015307

Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
160x110x41mm
B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Chiudi

B5017207

Bottom and top part E160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
160x110x38mm
B5017209 Bottom and top part E160 F

B5017209

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Chiudi

B5017209

Bottom and top part E160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x38mm

Accessory "battery"

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Chiudi

A9166001

Set of battery clips, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Chiudi

A9166002

Battery contact, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Chiudi

A9166003

Battery holder, 2 x AAA
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

Customising options for B5111107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
10 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
