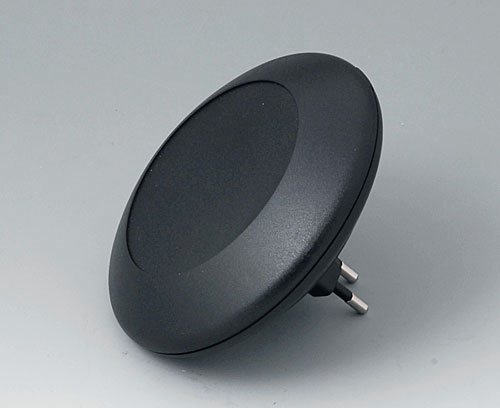

B5011029 ART-CASE R110 F

B5011029

ART-CASE R110 F

Electronic case with EURO plug section according to DIN VDE 0620 part 101. Top with recessed area for membrane keyboards.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "level" with plug section

Supply

1 bottom part, 1 plug section and 1 top part R110 F, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

Chiudi

B5111201

Set of screws
Prodotto aggiunto alla lista

Customising options for B5011029

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
PC+ABS (UL 94 V-0)
Plug section
ABS (UL 94 HB)
Bottom and top part
Protection class
Colore
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 110 mm
Height
30 mm
Keypad diameter
⌀ 72 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.167 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
66 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
