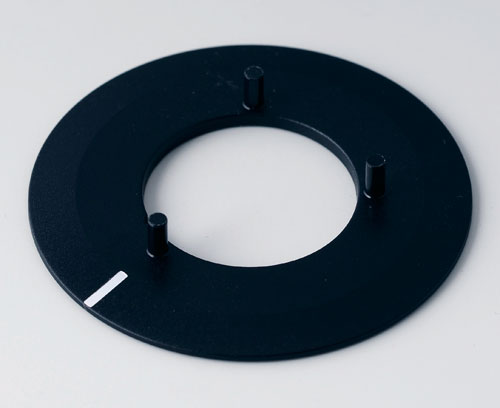

A7340010 Disk 40, with line

A7340010

Disk 40, with line

Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply

1 disk

  • Usato per
  • Modifiche specifiche del cliente
A2540060 ROUND KNOB 40, without line

A2540060

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2540060

ROUND KNOB 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Foro assiale 6mm
A2540068 ROUND KNOB 40, without line

A2540068

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2540068

ROUND KNOB 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Foro assiale 6mm
A2540080 ROUND KNOB 40, without line

A2540080

ROUND KNOB 40, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 2,8 Nm, function = 1,8 Nm.

Supply 1 round knob

Chiudi

A2540080

ROUND KNOB 40, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Foro assiale 8mm
A2640060 ROUND KNOB 40, with line

A2640060

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2640060

ROUND KNOB 40, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
40x15mm
Foro assiale 6mm
A2640068 ROUND KNOB 40, with line

A2640068

ROUND KNOB 40, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2640068

ROUND KNOB 40, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
40x15mm
Foro assiale 6mm
A3140068 COM-KNOBS 40, without recess

A3140068

COM-KNOBS 40, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borhole without chamfer.
Max. torque: assembly = 2.5 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3140068

COM-KNOBS 40, without recess
Prodotto aggiunto alla lista
PA 6
volcano
40x16mm
Foro assiale 6mm
A3140069 COM-KNOBS 40, without recess

A3140069

COM-KNOBS 40, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 2.5 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3140069

COM-KNOBS 40, without recess
Prodotto aggiunto alla lista
PA 6
nero
40x16mm
Foro assiale 6mm
A3140088 COM-KNOBS 40, without recess

A3140088

COM-KNOBS 40, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 2.8 Nm, function = 1.8 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3140088

COM-KNOBS 40, without recess
Prodotto aggiunto alla lista
PA 6
volcano
40x16mm
Foro assiale 8mm
A3140089 COM-KNOBS 40, without recess

A3140089

COM-KNOBS 40, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 2.8 Nm, function = 1.8 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3140089

COM-KNOBS 40, without recess
Prodotto aggiunto alla lista
PA 6
nero
40x16mm
Foro assiale 8mm

Customising options for A7340010

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2,4 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
