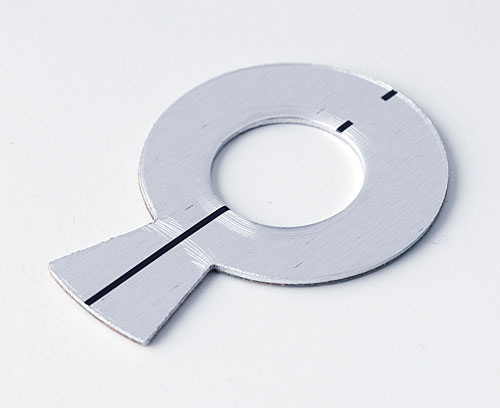

A6020019 Stator 20

A6020019

Stator 20

Suitable for round and wing knobs 20 / COM-KNOB 20. Stator with self-adhesive foil. Black marking.

Supply

1 Stator

  • Usato per
A2520040 ROUND KNOB 20, without line

A2520040

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2520040

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 4mm
A2520060 ROUND KNOB 20, without line

A2520060

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520060

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 6mm
A2520068 ROUND KNOB 20, without line

A2520068

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520068

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
20x15mm
Foro assiale 6mm
A2520630 ROUND KNOB 20, without line

A2520630

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520630

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 1/4″
A3120048 COM-KNOBS 20, without recess

A3120048

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120048

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 4mm
A3120049 COM-KNOBS 20, without recess

A3120049

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120049

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 4mm
A3120068 COM-KNOBS 20, without recess

A3120068

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120068

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 6mm
A3120069 COM-KNOBS 20, without recess

A3120069

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120069

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 6mm
A3120638 COM-KNOBS 20, without recess

A3120638

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120638

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 1/4″
A3120639 COM-KNOBS 20, without recess

A3120639

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120639

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 1/4″
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,46 g
Customs tariff number
(OKW product)
83100000
Country of manufacture
Germany
