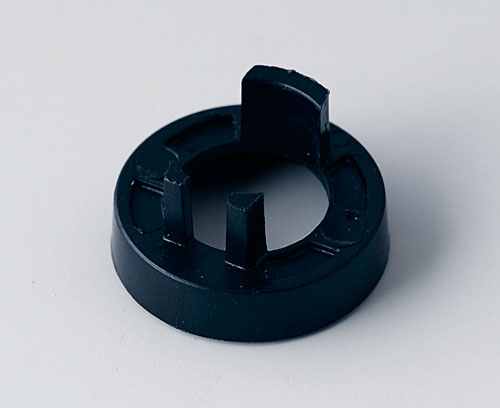

A5116000 Nut cover 16, without line

A5116000

Nut cover 16, without line

Suitable for spindle-shaped knob 16. Nut cover simply to pin up.

Supply

1 nut cover

  • Usato per
A2316040 SPINDLE-SHAPED KNOB 16, without line

A2316040

SPINDLE-SHAPED KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2316040

SPINDLE-SHAPED KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x16mm
Foro assiale 4mm
A2416030 SPINDLE-SHAPED KNOB 16, with line

A2416030

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.5 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2416030

SPINDLE-SHAPED KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x16mm
Foro assiale 3mm
A2416040 SPINDLE-SHAPED KNOB 16, with line

A2416040

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2416040

SPINDLE-SHAPED KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x16mm
Foro assiale 4mm
A2416048 SPINDLE-SHAPED KNOB 16, with line

A2416048

SPINDLE-SHAPED KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2416048

SPINDLE-SHAPED KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
16x16mm
Foro assiale 4mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
