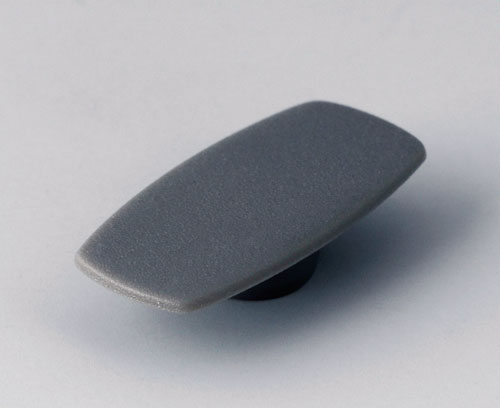

A5023008 Cover 23, without line

A5023008

Cover 23, without line

Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply

1 cover

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

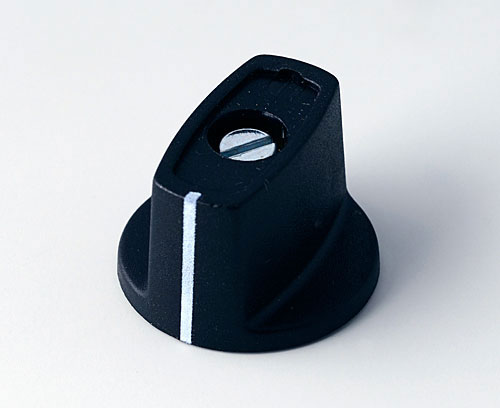

A2423040 SPINDLE-SHAPED KNOB 23, with line

A2423040

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0,8 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2423040

SPINDLE-SHAPED KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x16mm
Foro assiale 4mm

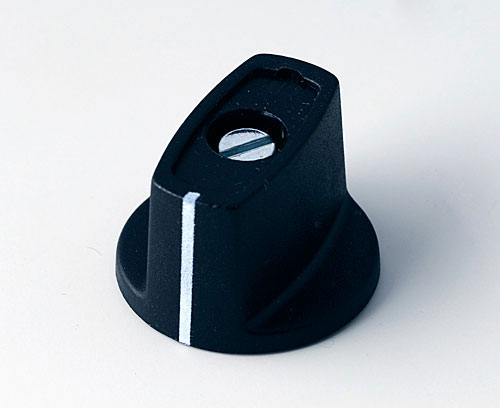

A2423060 SPINDLE-SHAPED KNOB 23, with line

A2423060

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 spindle-shaped knob

Chiudi

A2423060

SPINDLE-SHAPED KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x16mm
Foro assiale 6mm
A2423068 SPINDLE-SHAPED KNOB 23, with line

A2423068

SPINDLE-SHAPED KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.

Supply 1 spindle-shaped knob

Chiudi

A2423068

SPINDLE-SHAPED KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x16mm
Foro assiale 6mm

Customising options for A5023008

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
dusty grey RAL 7037
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,25 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
