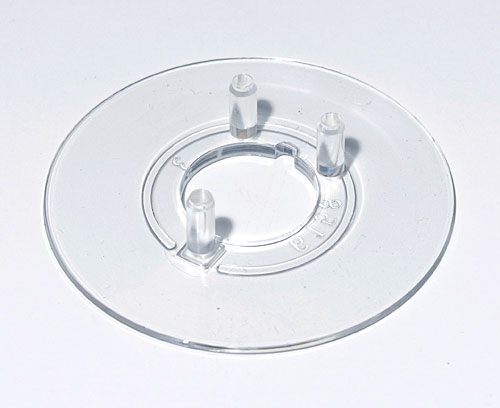

A4420001 Dial 20

A4420001

Dial 20

Dial simply to pin up for round and wing knob 20 / COM-KNOB 20. Surface bright.

Supply

1 dial

  • Usato per
  • Modifiche specifiche del cliente
A2520040 ROUND KNOB 20, without line

A2520040

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2520040

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 4mm
A2520060 ROUND KNOB 20, without line

A2520060

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520060

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 6mm
A2520068 ROUND KNOB 20, without line

A2520068

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520068

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
20x15mm
Foro assiale 6mm
A2520630 ROUND KNOB 20, without line

A2520630

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2520630

ROUND KNOB 20, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 1/4″
A2620040 ROUND KNOB 20, with line

A2620040

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2620040

ROUND KNOB 20, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 4mm
A2620060 ROUND KNOB 20, with line

A2620060

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2620060

ROUND KNOB 20, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
20x15mm
Foro assiale 6mm
A2620068 ROUND KNOB 20, with line

A2620068

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Chiudi

A2620068

ROUND KNOB 20, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
20x15mm
Foro assiale 6mm
A3120048 COM-KNOBS 20, without recess

A3120048

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120048

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 4mm
A3120049 COM-KNOBS 20, without recess

A3120049

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120049

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 4mm
A3120068 COM-KNOBS 20, without recess

A3120068

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120068

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 6mm
A3120069 COM-KNOBS 20, without recess

A3120069

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120069

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 6mm
A3120638 COM-KNOBS 20, without recess

A3120638

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120638

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
volcano
20x16mm
Foro assiale 1/4″
A3120639 COM-KNOBS 20, without recess

A3120639

COM-KNOBS 20, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.9 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3120639

COM-KNOBS 20, without recess
Prodotto aggiunto alla lista
PA 6
nero
20x16mm
Foro assiale 1/4″

Customising options for A4420001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1,2 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
