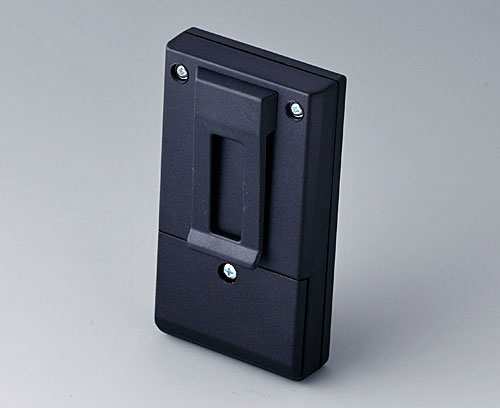

A9172109 Belt/Pocket clip

A9172109

Belt/Pocket clip

Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply

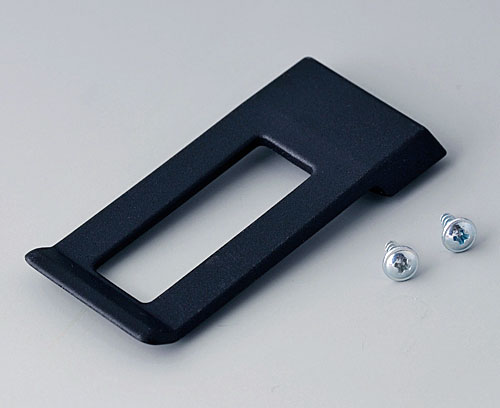

1 belt/pocket clip, assembly kit

  • Usato per
  • Modifiche specifiche del cliente
A9070109 DATEC-POCKET-BOX S

A9070109

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070109

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
85x46x16mm
IP 41
A9070119 DATEC-POCKET-BOX S

A9070119

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070119

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
85x46x16mm
IP 54
A9070209 DATEC-POCKET-BOX S

A9070209

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070209

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
85x46x16mm
IP 41
A9070219 DATEC-POCKET-BOX S

A9070219

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070219

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
85x46x16mm
IP 54
A9071109 DATEC-POCKET-BOX M

A9071109

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071109

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
105x58x18,5mm
IP 41
A9071119 DATEC-POCKET-BOX M

A9071119

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071119

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
105x58x18,5mm
IP 54
A9071209 DATEC-POCKET-BOX M

A9071209

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the ouside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071209

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
105x58x18,5mm
IP 41
A9071219 DATEC-POCKET-BOX M

A9071219

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071219

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
105x58x18,5mm
IP 54
A9072109 DATEC-POCKET-BOX L

A9072109

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072109

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072119 DATEC-POCKET-BOX L

A9072119

DATEC-POCKET-BOX L Robust pocket box wit sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072119

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 54
A9072129 DATEC-POCKET-BOX L

A9072129

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072129

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072209 DATEC-POCKET-BOX L

A9072209

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072209

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41
A9072219 DATEC-POCKET-BOX L

A9072219

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072219

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
120x65x22mm
IP 54
A9072229 DATEC-POCKET-BOX L

A9072229

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072229

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
120x65x22mm
IP 41

Customising options for A9172109

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Length
62 mm
Width
30 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4,5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
