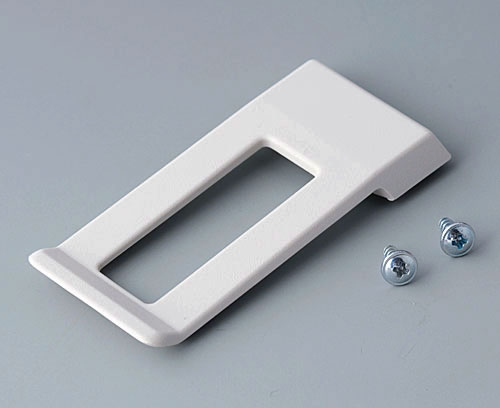

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip

Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).

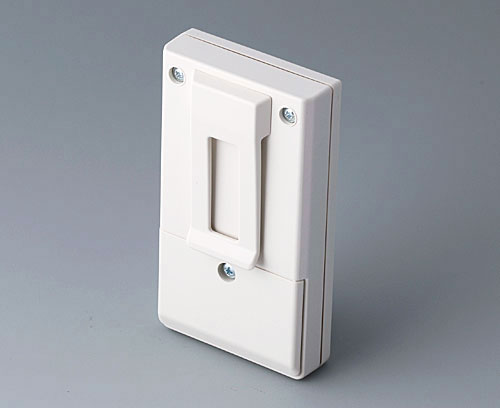

Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply

1 belt/pocket clip, assembly kit

  • Usato per
  • Modifiche specifiche del cliente
A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Chiudi

A9010065

FLAT-PACK CASES 100 N, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x25mm
IP 40
A9070107 DATEC-POCKET-BOX S

A9070107

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070107

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
85x46x16mm
IP 41
A9070117 DATEC-POCKET-BOX S

A9070117

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Chiudi

A9070117

DATEC-POCKET-BOX S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
85x46x16mm
IP 54
A9071107 DATEC-POCKET-BOX M

A9071107

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1,5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071107

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
105x58x18,5mm
IP 41
A9071117 DATEC-POCKET-BOX M

A9071117

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9071117

DATEC-POCKET-BOX M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
105x58x18,5mm
IP 54
A9072107 DATEC-POCKET-BOX L

A9072107

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072107

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 41
A9072117 DATEC-POCKET-BOX L

A9072117

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072117

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 54
A9072127 DATEC-POCKET-BOX L

A9072127

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Chiudi

A9072127

DATEC-POCKET-BOX L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x22mm
IP 41
A9404331 SHELL-TYPE CASES G 85, Vers. I

A9404331

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9404331

SHELL-TYPE CASES G 85, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x85x22mm
IP 65 opt.
A9404333 SHELL-TYPE CASES V 85, Vers. I

A9404333

SHELL-TYPE CASES V 85, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9404333

SHELL-TYPE CASES V 85, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x85x22mm
A9404341 SHELL-TYPE CASES G 85, Vers. I

A9404341

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version without battery compartment.

Supply 1 top and base part, assembly kit

Chiudi

A9404341

SHELL-TYPE CASES G 85, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x85x33mm
IP 65 opt.
A9404441 SHELL-TYPE CASES G 85, Vers. I

A9404441

SHELL-TYPE CASES G 85, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9404441

SHELL-TYPE CASES G 85, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x85x45mm
IP 65 opt.
A9406331 SHELL-TYPE CASES G 110, Vers. I

A9406331

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406331

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm
IP 65 opt.
A9406333 SHELL-TYPE CASES V 110, Vers. I

A9406333

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406333

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33mm
A9406341 SHELL-TYPE CASES G 110, Vers. I

A9406341

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406341

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
IP 65 opt.
A9406343 SHELL-TYPE CASES V 110, Vers. I

A9406343

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406343

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x45mm
A9406351 SHELL-TYPE CASES G 110, Vers. I

A9406351

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Top view with recessed area. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406351

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x33,5mm
IP 65 opt.
A9406441 SHELL-TYPE CASES G 110, Vers. I

A9406441

SHELL-TYPE CASES G 110, Vers. I Two-part plastic case with closed front and rear. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406441

SHELL-TYPE CASES G 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm
IP 65 opt.
A9406443 SHELL-TYPE CASES V 110, Vers. I

A9406443

SHELL-TYPE CASES V 110, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9406443

SHELL-TYPE CASES V 110, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
72x114x57mm

Customising options for A9172107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Length
62 mm
Width
30 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4,5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
